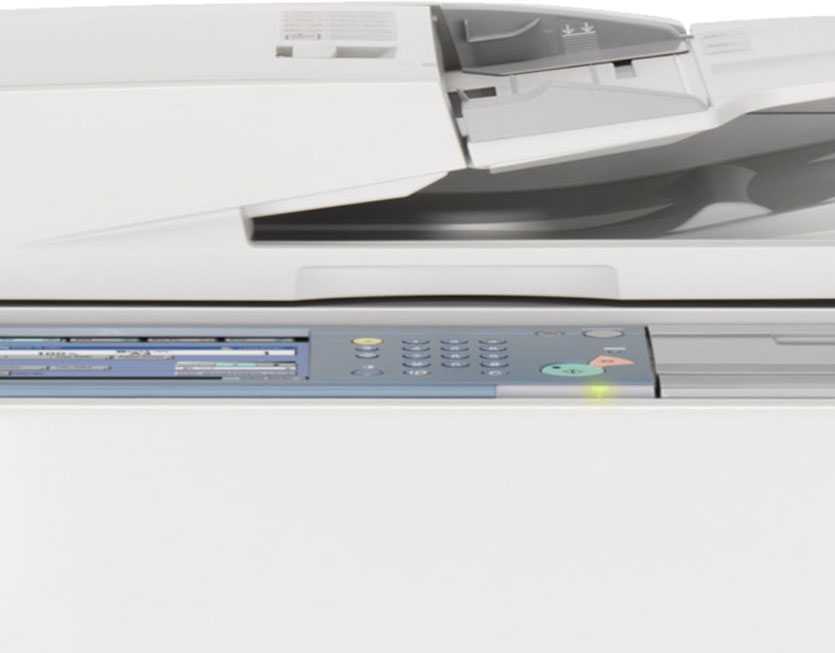

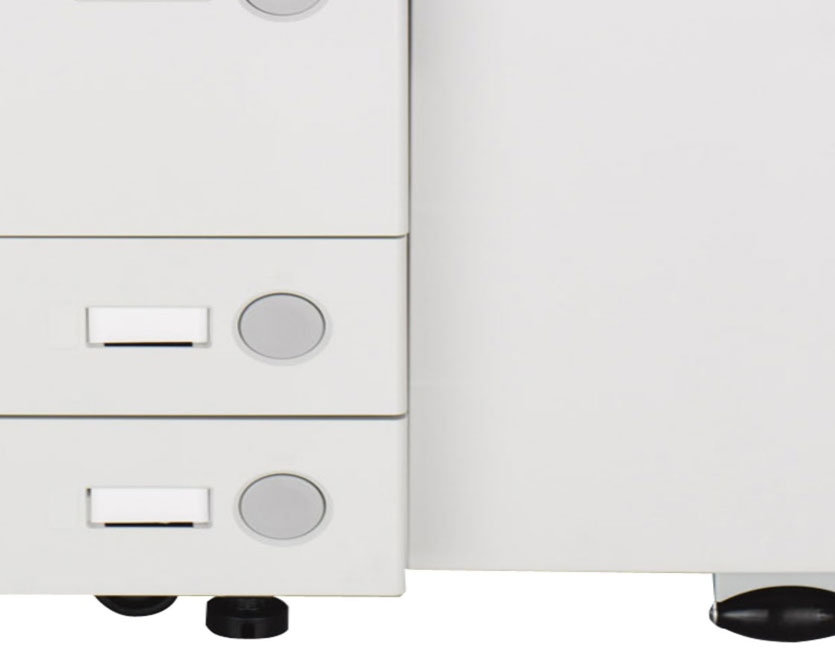

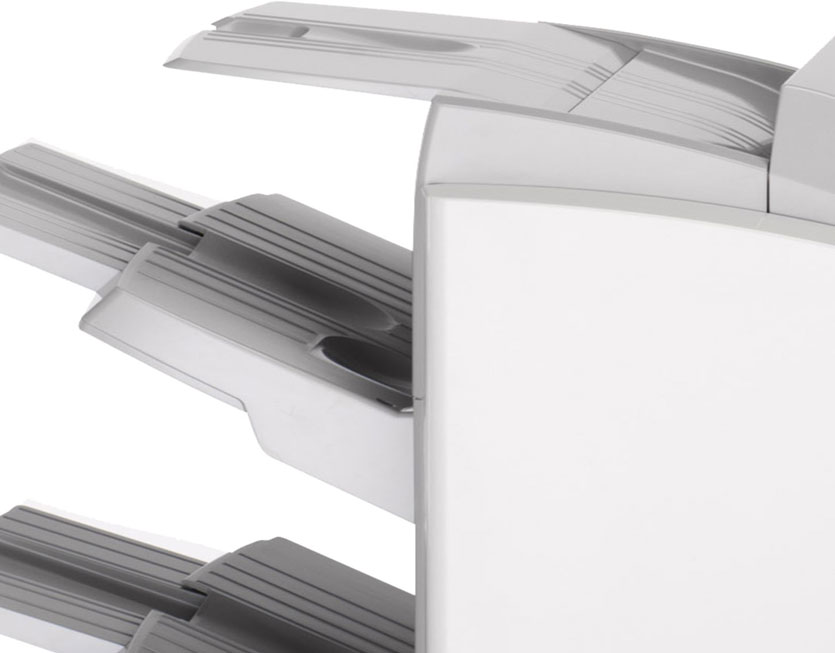

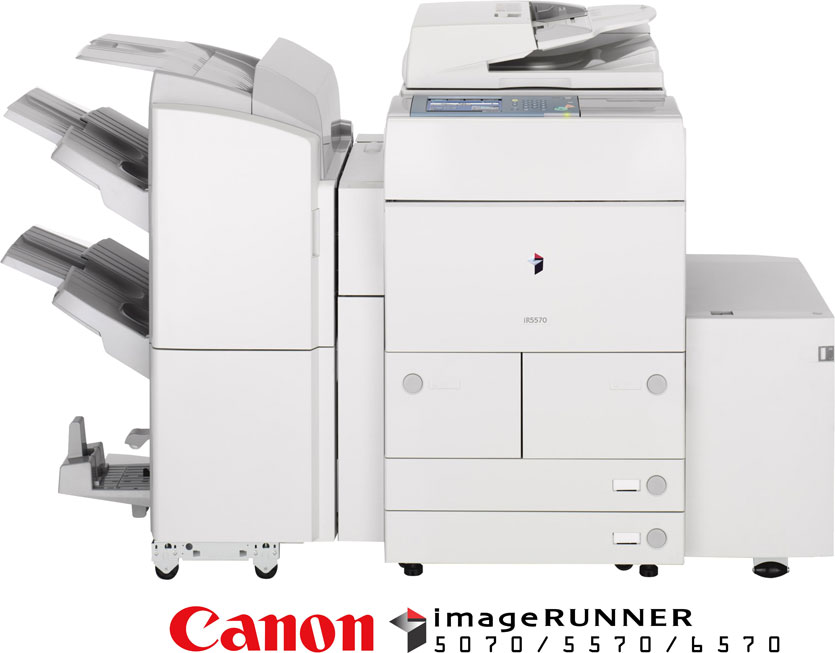

Picture Gallery

•
•
•
•

Product Specifications

Type Console

Maximum size A3

Copy Sizes Cassette; A5R-A3; Stack Bypass: A3-A5,

Resolution Scanning: 600dpi x 600dpi; Copying: 1200dpi equivalent x 600dpi; Printing: 2400dpi equivalent x 600dpi; 256 gradations

Copy/Print Speed 50cpm (iR5070), 55cpm (iR5570), 65cpm (iR6570)

First Copy Time Less than 3.3 second

Warm-up Time 30sec. max (10sec. max from sleep mode)

Multiple Copies/Prints 1 to 999 prints

Duplexing Standard auto stackless

Paper Weight Cassette: 64 to 200gsm; Stack Bypass: 64 to 200gsm; Cassette: Universal: A5R to A3

Paper Capacity Standard: 1550 Sheets x 2 cassettes (3000 sheets); Multi Stack Bypass: 50 sheets (80gsm); Optional: Side paper deck: 3500 sheets; Max paper capacity: 7650 sheets

CPU Canon Customer Processor, 333Mhz

Memory 512MB

Hard Disk Drive 20GB

Interface Ethernet (100Base-TX/10-Base-T)

Power Supply 220-240V/10A/50Hz

Dimensions WxDxH: 643x743x1192mm

Weight Approx. 215kg
